$3,500 (USD)

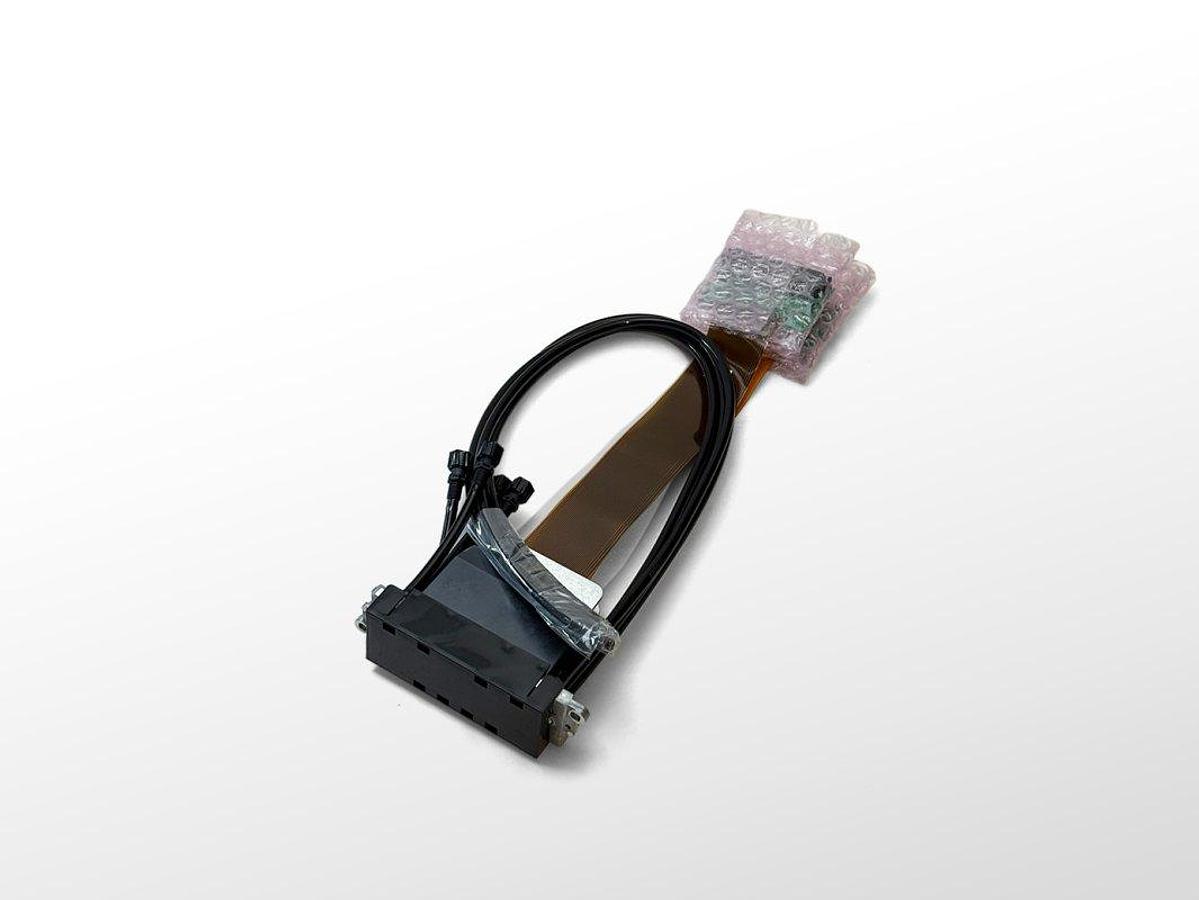

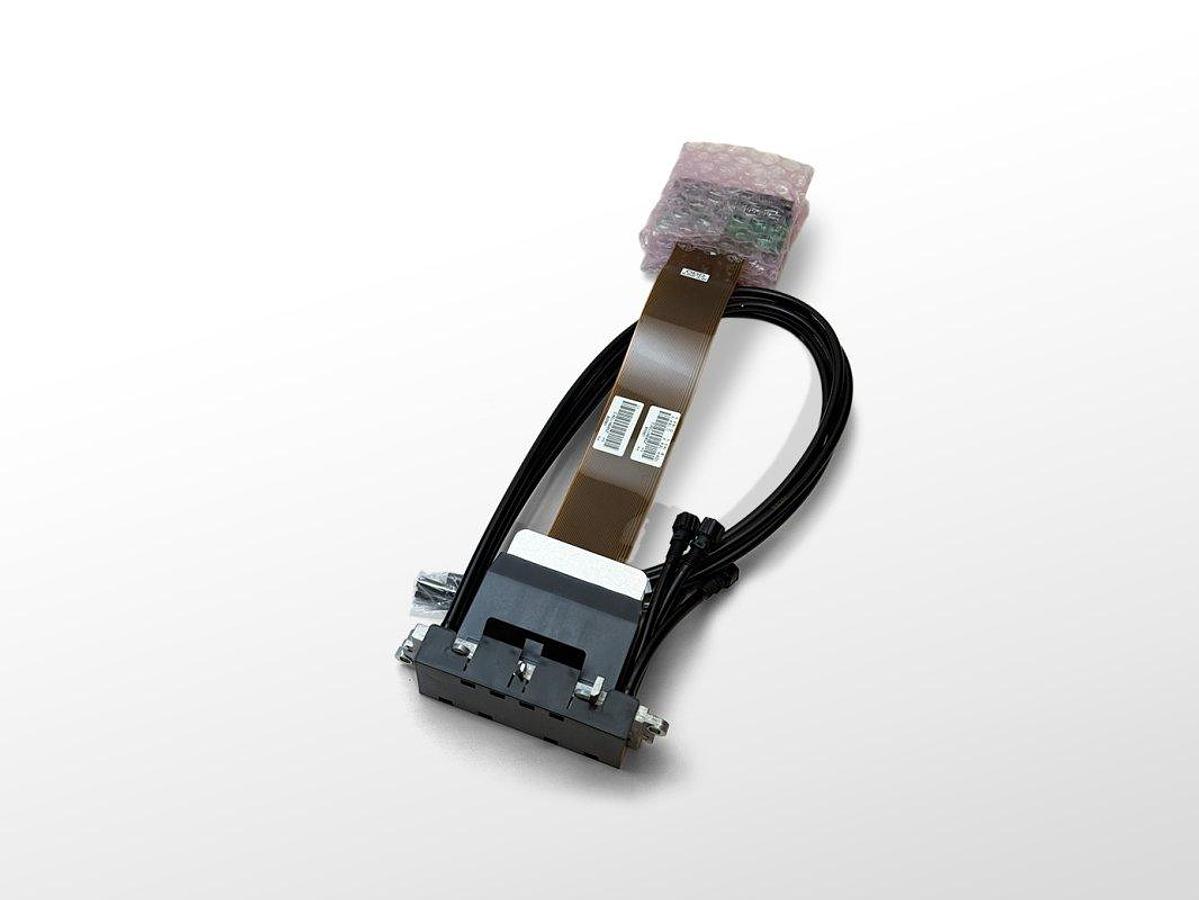

Mimaki Mimaki JFX500 Printhead - M022626
or
Call +1 800-787-9802
Specifications
| Manufacturer | Mimaki |
| Model | Mimaki JFX500 Printhead - M022626 |
| Condition | Used |
| Stock Number | ID-25000-8485 |
| Rip included | No |
| Service contract | No |
| Comments | Mimaki GEN5 Printhead Assembly M022626 (Replaces M015068 / M013497) For JFX500-2131, UJV500-160, SWJ-320EA and related models Upgrade your printer with the original Mimaki GEN5 printhead (MH5420/5440), engineered for high-speed UV printing, precise drop control, and long-term reliability across Mimaki wide-format platforms. Compatible Printers: Mimaki JFX500-2131 Mimaki UJV500-160 Mimaki UJV55-320 Mimaki SWJ-320EA Fujifilm Acuity LED 3200R Replaces Part Numbers: M015068 M013497 Key Benefits: OEM Mimaki printhead assembly for guaranteed compatibility Up to 600 dpi nozzle density for sharp, consistent output Variable drop size (7–35 pl) for smooth gradients and fine detail High-speed jetting up to 60 kHz Long lifespan rated up to 100 billion actuations per nozzle Integrated heater and thermistor for stable performance Technical Specifications: Nozzles: 4 × 320 (1,280 total) Nozzle spacing: 0.1693 mm Drop velocity: 7 m/s Native drop size: 7 pl Piezo type: D33 Stacked PZT Dimensions: 89 × 25 × 69 mm (excluding cables) Operating temperature: up to 80°C Construction: Coated SST nozzle plate, nickel alloy, epoxy adhesive Firmware Requirements: JFX500-2131: v3.40 or later UJV500-160: v2.00 or later UJV55-320: v2.50 or later SWJ-320EA: v1.30 or later SIJ-320UV: v1.90 or later |
