$3,750 (USD)

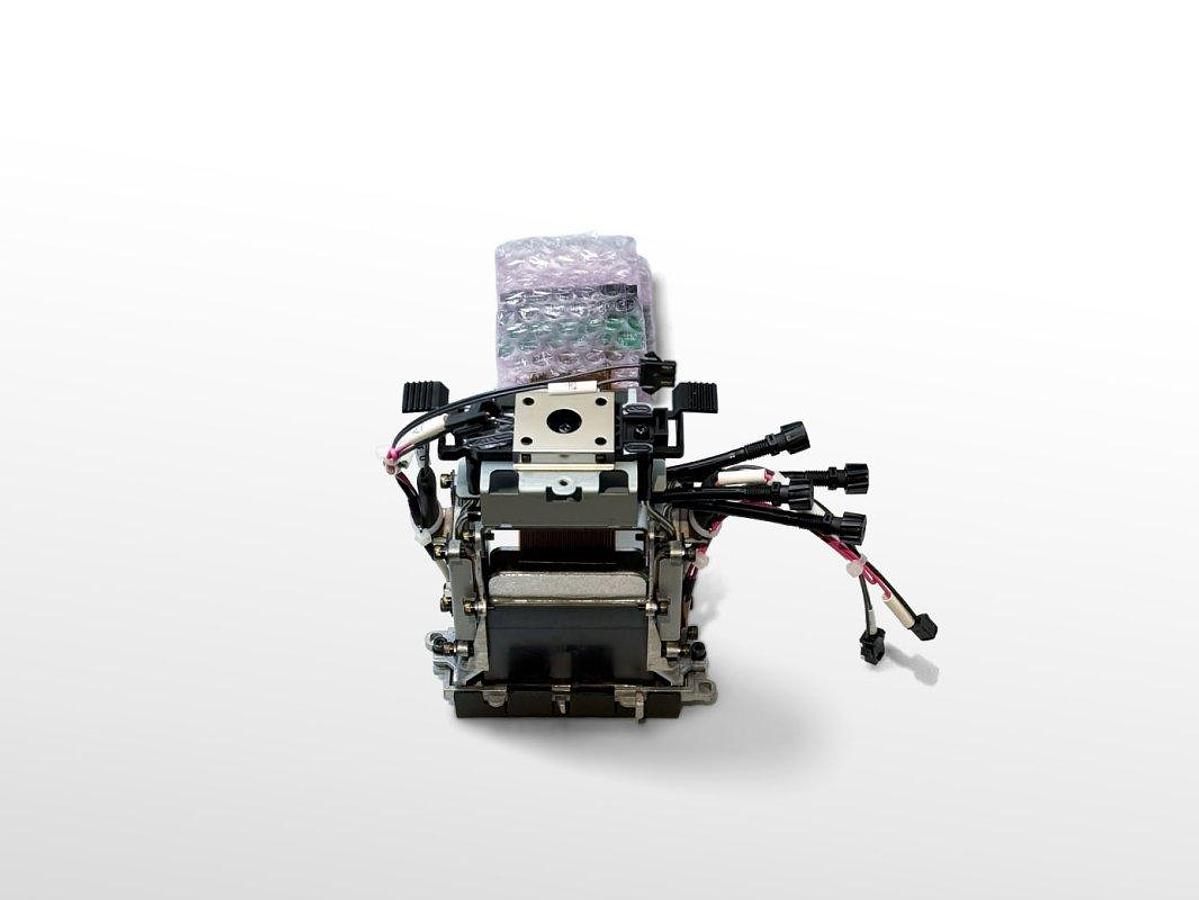

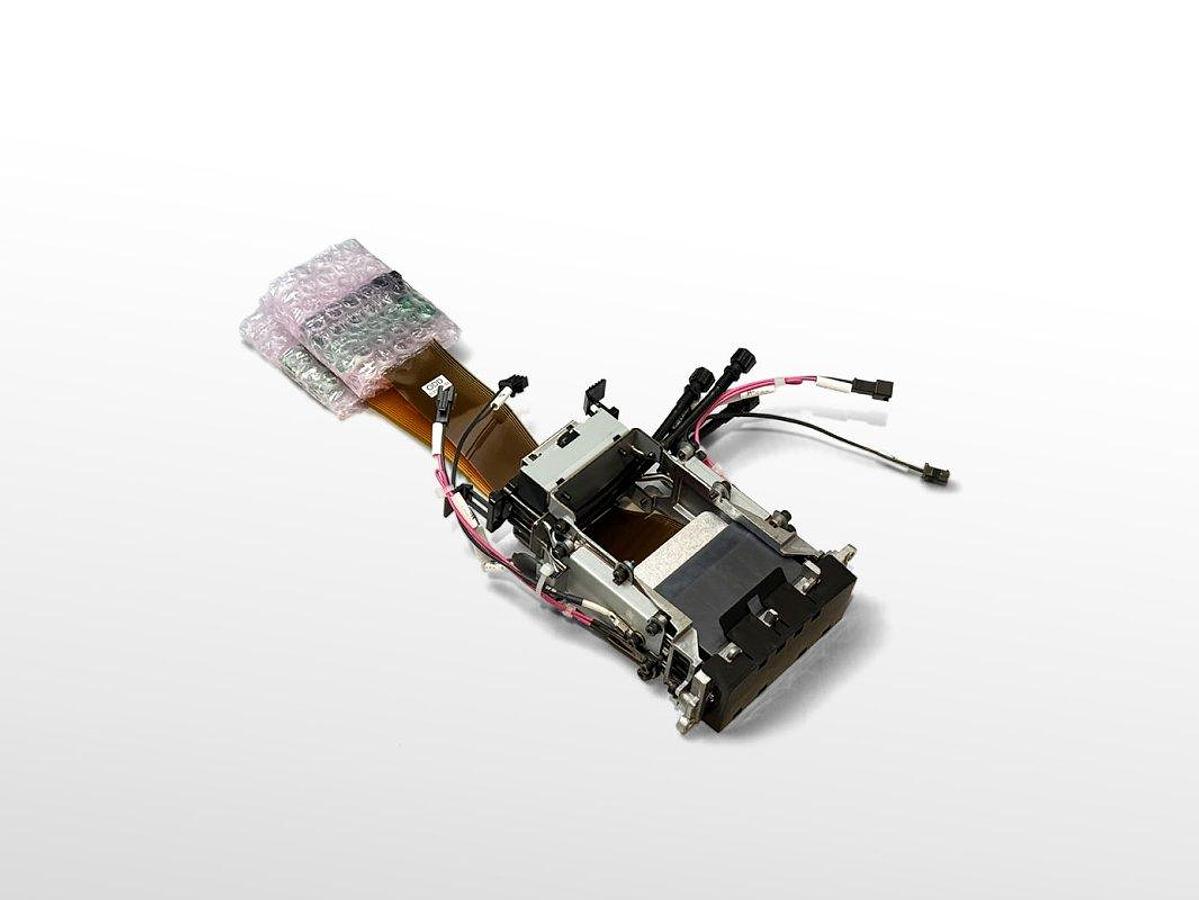

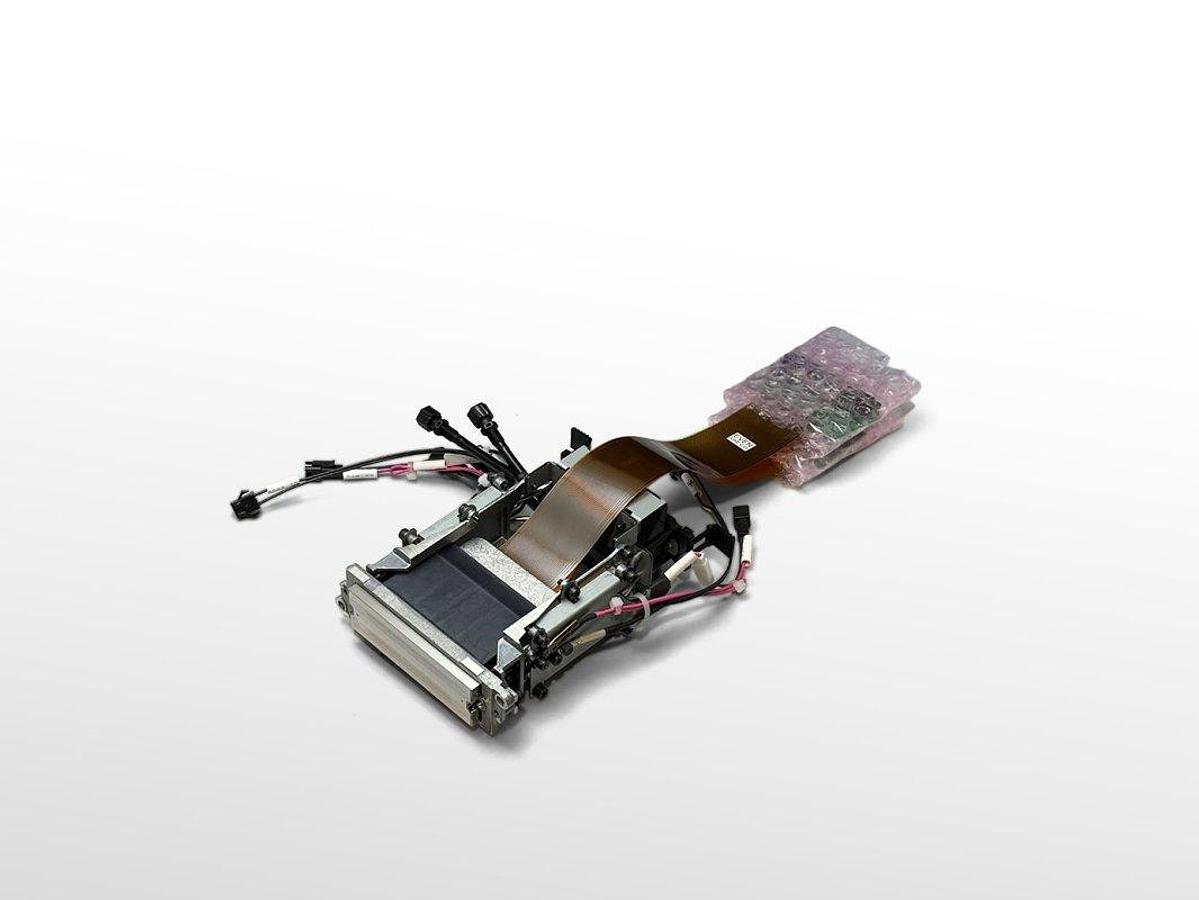

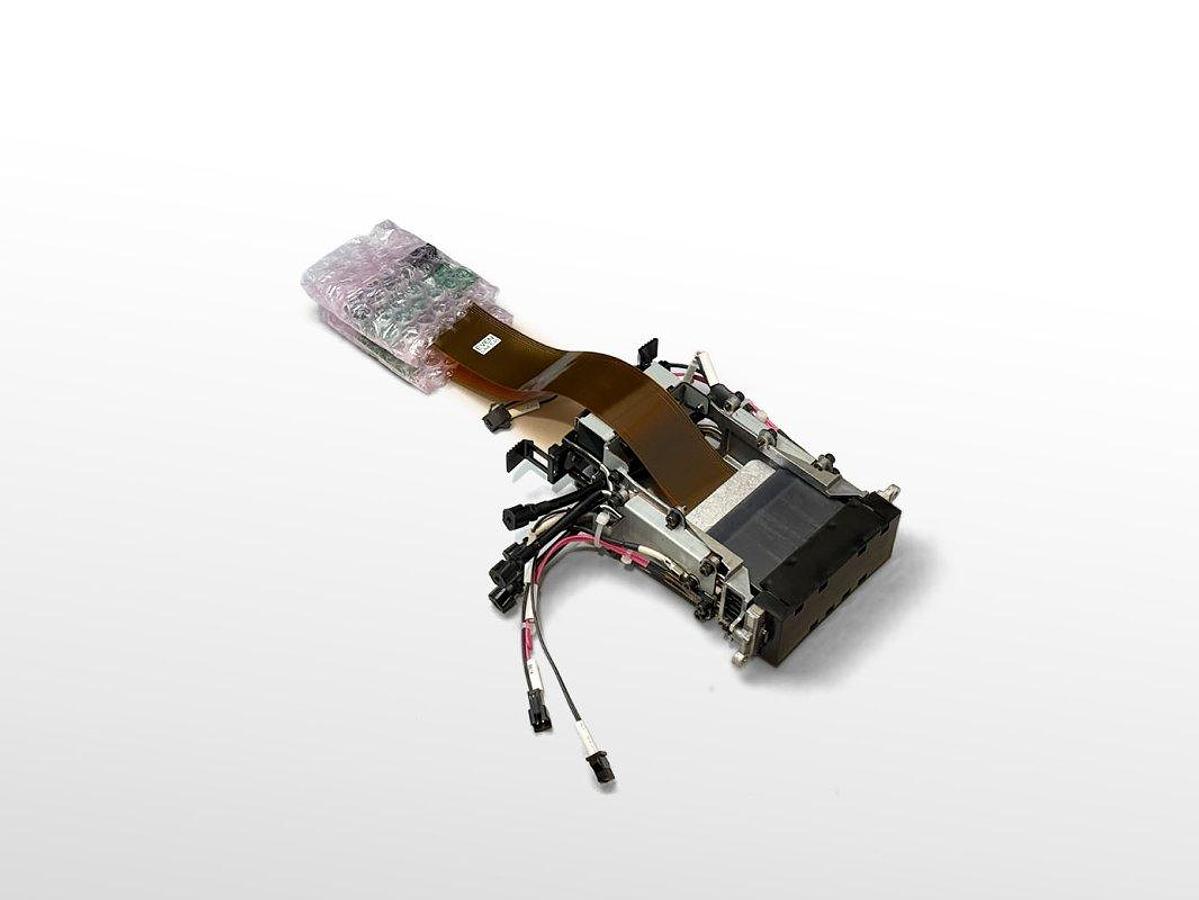

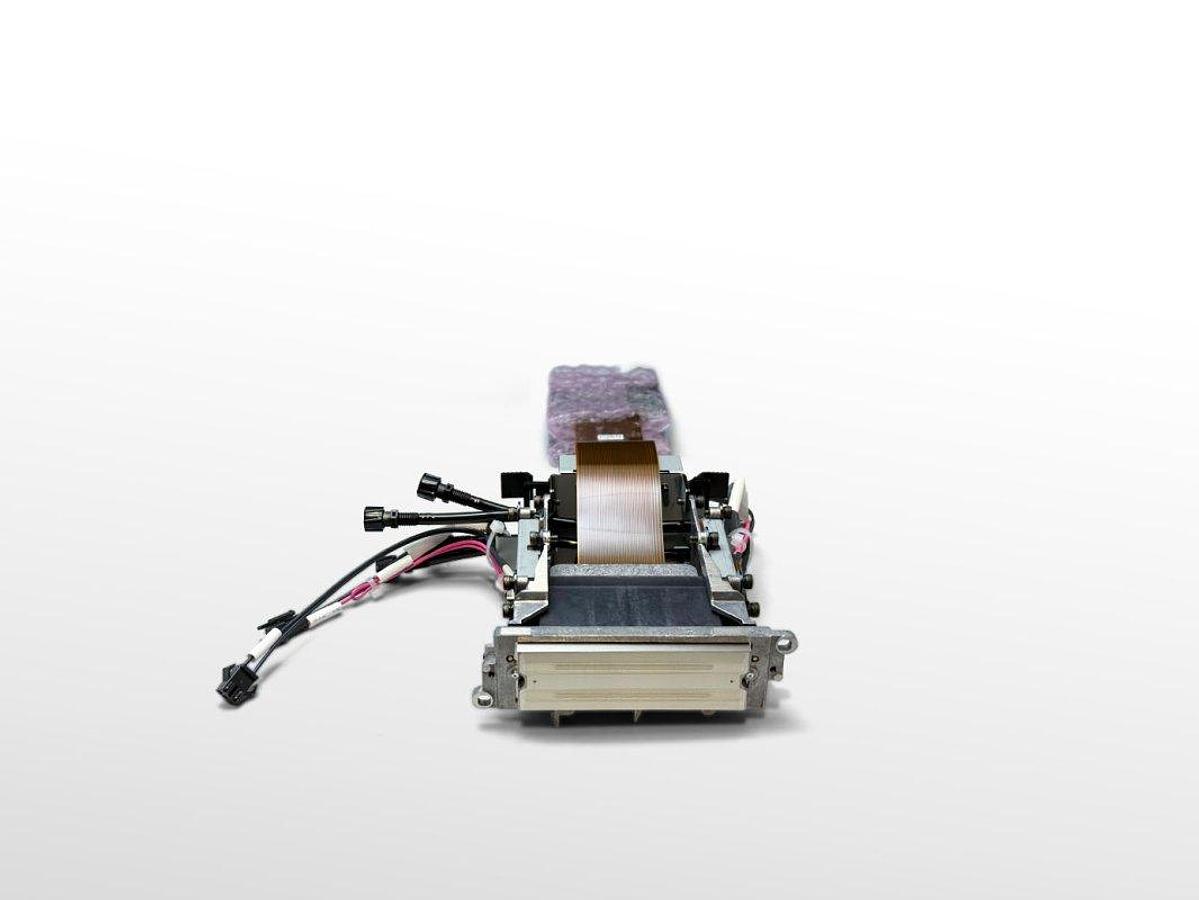

Mimaki JFX200-2513 Printhead - M022625
or
Call +1 800-787-9802
Specifications
| Manufacturer | Mimaki |
| Model | JFX200-2513 Printhead - M022625 |
| Condition | Used |
| Stock Number | ID-25000-8536 |
| Rip included | No |
| Service contract | No |
| Comments | Mimaki GEN5 Printhead – OEM (M026887) Compatible with Mimaki JFX200 Series Description Original Mimaki GEN5 printhead (Part #M026887), replacing M022625, M017004, and M015028. Designed for JFX200-2513 and JFX200-2513 EX printers. Supports 2–4 color configurations with 8-level grayscale for high-precision output and consistent drop control. Key Specs Nozzles: 4 x 320 (1,280 total) Resolution: Up to 600 npi Drop size: 7–35 pl (native 7 pl) Jetting frequency: Up to 60 kHz Drop velocity: 7 m/s Nozzle spacing: 0.1693 mm Construction & Performance Piezo: D33 stacked PZT Materials: SST, nickel alloy, epoxy Coated stainless steel nozzle plate Integrated heater & thermistor Operating temp: Up to 80°C Rated life: 100B actuations per nozzle Dimensions 89 × 25 × 69 mm (excluding cables) Compatibility Mimaki JFX200-2513 Mimaki JFX200-2513 EX Note Firmware update may be required: JFX200-2513: v2.60+ JFX200-2531: v2.50+ |
